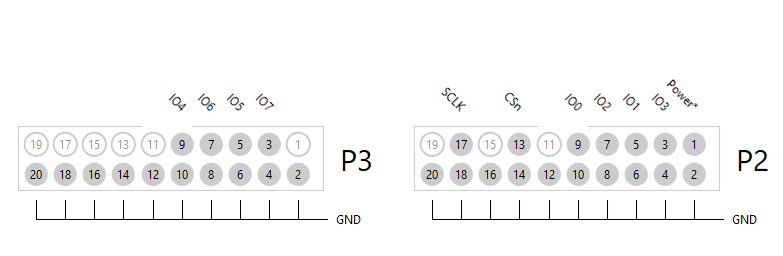

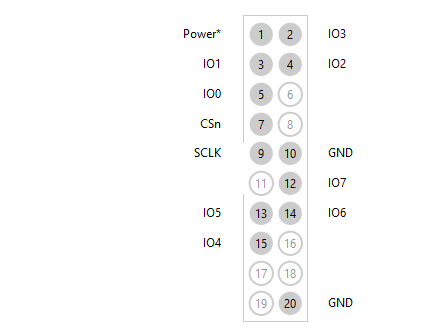

8-bit connection mode

This connection mode is compatible with Single, Dual, Quad or Octal SPI (target device dependent) and can program a single device at a time.

*Pins marked with an asterisk are optional
