Project File Preamble

The project file preamble contains a description of the circuit implementation. The information in the preamble contains sufficient detail to facilitate the generation of the test patterns required in order to implement the connection and device tests.

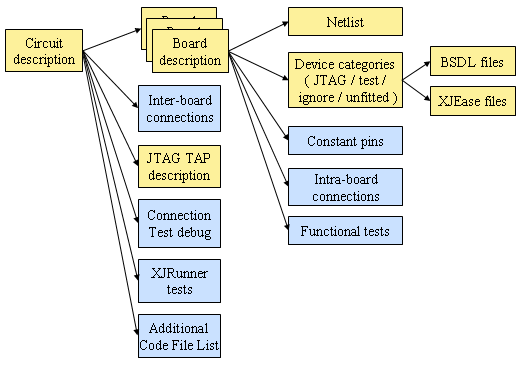

The preamble is hierarchical, as shown below. The yellow sections are required for all boards:

Syntax

CIRCUIT NAME := name
    BOARD NAME := name
        FILENAME := "boardfile.xje";
    END;
    ...
    CONNECTION LIST
        Inter-Board Connections
    END;
    JTAG CHAIN
        JTAG Chain Descriptions
    END;
    CONNTEST
        Connection Test Parameters
    END;
    TEST LIST
        XJRunner Test List
    END;
    FILES
        List of Additional Code Files
    END;
END;

Example

The following example includes all aspects of the project preamble.

CIRCUIT NAME := "theCircuit"

    // The main board. The circuit includes an external board with a
    // StrongARM on it that has a JTAG connector, extending the JTAG chain.
    BOARD NAME := "mainBoard"
        FILENAME := "mainBoard.xje"
    END;

    // The extension board
    BOARD NAME := "extBoard"
        FILENAME := "extBoard.xje"
    END;


    CONNECTION LIST
        // Connect the two boards together.
        // N.B. con1 includes the JTAG connections.
        CONNECT DEVICE mainBoard.CON1 TO extBoard.CON1;
    END;

    JTAG CHAIN
        CONNECTOR "Top_DEVICE"
            TDI := CN1.14;
            TDO := CN1.12;
            MAPPING
                TDI := 14;
                TDO := 12;
                TMS := 18;
                TCK := 8;
                LOW := 3, 5, 7, 9, 11, 13, 15, 17, 19;
                GP0 := 6;
                GP1 := 10;
                POWER := ON;
            END;
        END;
        FREQUENCY := 1M;
    END;

    CONNTEST
        TEST := CONNTEST;
        MAX_NETS := 100;
    END;

    TEST LIST
        "Program Flash"
            IC12.ProgramFlash;
        END;
    END;

    FILES
        "AdditionalFile.xje";
    END;
END;

The sections of the preamble must be in the order given above, or a syntax error will be generated.
