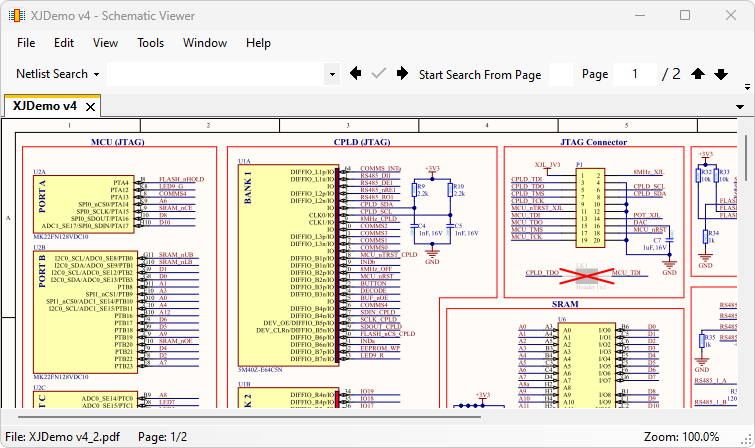

Schematic Viewer Overview

The Schematic Viewer is a useful tool for showing and navigating the schematic of your board.

It is available in both XJDeveloper and XJRunner Connection Test Output. To enable this feature you must assign schematic files to your project.

The Schematic Viewer contains an intelligent Netlist Search which allows you to navigate directly to the desired pin, net or device without having to iterate through all occurrences of the name of that pin, net or device in the PDF.
