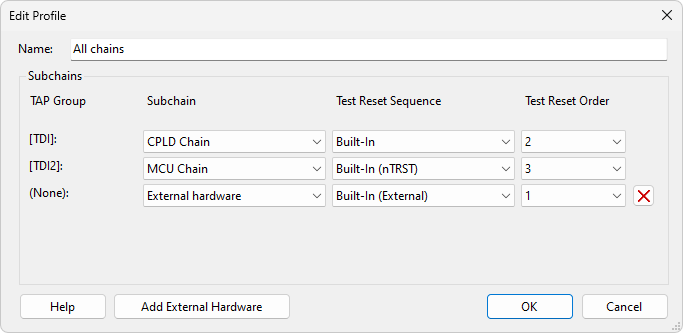

Add/Edit Profile Dialog

The Add/Edit Profile Dialog is opened from the Advanced Configuration Options tab when adding or editing a Profile.

TAP Group

The TAP group to pick a subchain from.

Subchain

The subchain to use for this TAP group. An option of None is always available for when the TAP group is not required by the profile.

Test Reset Sequence

The reset sequence the subchain will use to reset. There will always be the option to select a built-in sequence, and below that all other test reset sequences that are associated with the subchain selected.

Test Reset Order

Every time the profile is reset, this is the order that the subchains will be reset in.

Remove

A remove button will be visible for any external hardware only subchains to remove the item from the list.

Add External Hardware button

External hardware only subchains can be added to the profile using this button.
