XJPack

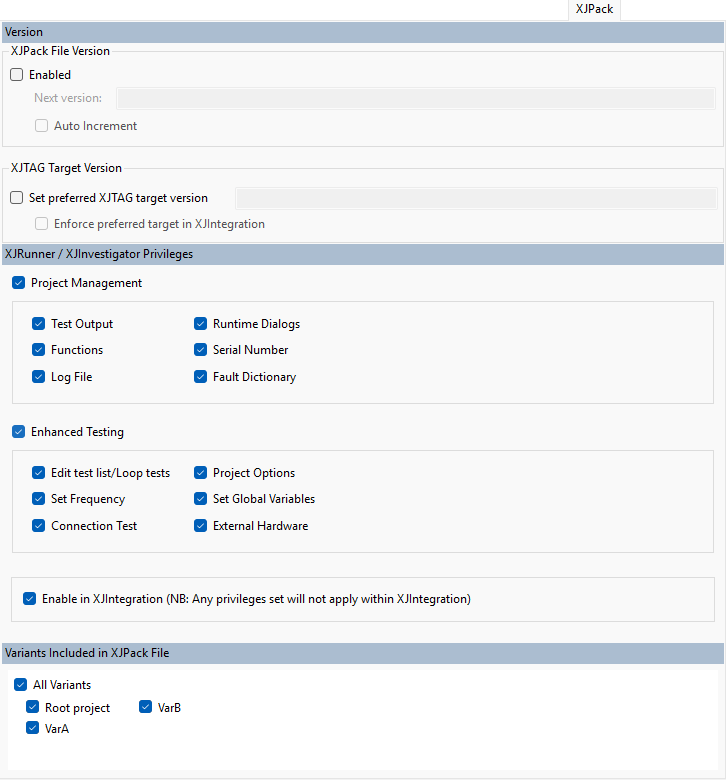

The XJPack tab on the XJRunner Setup screen is used to configure how XJPack files are created for the project.

Version

The Version section allows XJPack versioning to be configured and a target XJTAG version to be defined. In the XJPack File Version section click the Enable checkbox to enable versioning and enter the version for the next XJPack file in the Next Version text box. If the Auto Increment checkbox is checked, then XJDeveloper will automatically increment the version every time the project is packed.

In the XJTAG Target Version section click the Set preferred XJTAG target version checkbox to set a target version for the XJPack file. A specific XJTAG release (e.g. 4.2.1) or a family of releases (e.g. 4.2) must be specified in the text box. When opening the XJPack file in any XJTAG application the user will be warned if the set target version does not match the current application version. If the Enforce preferred target in XJIntegration checkbox is set then the target requirement is also strictly enforced in XJIntegration, preventing the XJPack file from being opened unless the target versions matches the current XJTAG version.

Privileges

The Privileges section allows you to define the level of access users have to different features in XJRunner and XJInvestigator when using this project. Unchecking something here will override any user privileges a user may have and disable that feature. More information about how privileges affect XJRunner can be found here.

If no checkboxes are selected, the every XJRunner user will only have the privileges of a basic user. This means users can run the default tests, but not modify the test selection or any other option that affects how tests are run. In addition, the XJPack file cannot be opened in XJInvestigator at all.

Variants

The Variants section allows you to select which variants should be included in the XJPack file. Only included variants will be available in XJRunner and XJInvestigator.

Any variants which contain errors will be displayed in red and cannot be included in the XJPack file until these errors are resolved. More information about Variants can be found here.
