XJDemo Board

XJTAG often supplies systems with an XJDemo board. This board allows the user to discover many of the features found in XJTAG for themselves, using the worked tutorial examples or installed demonstration test projects. If your system was not supplied with one but you wish to learn more of how to use XJTAG, or evaluate upgrading your XJTAG product licence, please contact your local distributor who will be able to loan you one.

The current version of XJTAG includes board data, projects and tutorials to work with XJDemo v4 boards. If you have an older version of XJDemo, contact your local distributor to borrow a v4 board or contact XJTAG to ask for suitable files for your version of the XJDemo board.

XJDemo v4

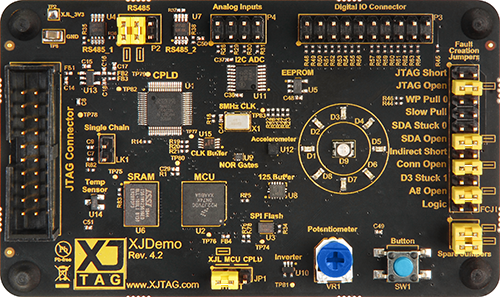

The XJDemo v4 board contains a mixture of JTAG and non-JTAG components, including a push-button, LEDs, RS485 transceivers, an ADC, logic devices and memory (SRAM and flash), to demonstrate the full capabilities of the XJTAG system.

It also has a set of jumpers which allow faults to be simulated and then detected using XJTAG.

The XJDeveloper tutorial for the XJDemo v4 board can be found here.
