New Chain View

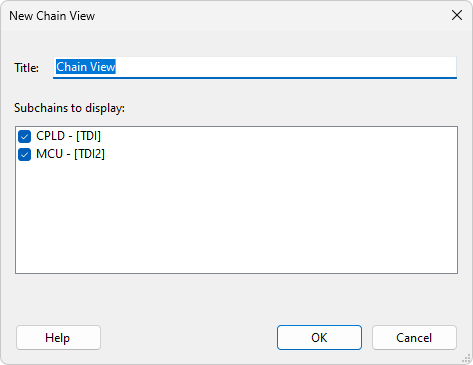

The New Chain View dialog allows users to add an additional Chain View pane to XJAnalyser. This pane will appear docked to the right of any existing chain views, or fully docked in the screen if no chain views are currently open. The Title of the chain view may be set and the subchains to display may be selected.

The subchain selection is not available for XJAnalyser projects created before 4.3 as these still run as a single chain.

Using XJDeveloper projects

When using XJDeveloper projects the subchain selection is only available if the project uses the Dynamic Chains feature feature. Only subchains that contain JTAG devices are shown. Only the selected subchains that are used by the currently selected profile will be displayed in the chain view.
