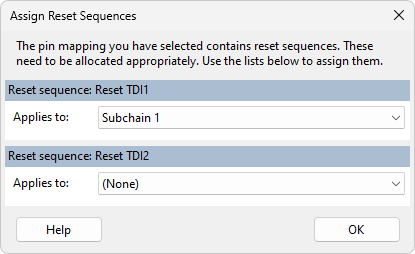

Assign Reset Sequences Dialog

If a project has subchains defined and the loaded pin mapping contains test reset sequences, the Assign Reset Sequences dialog may appear. This allows you to tell XJTAG which subchains each test reset sequence can be applied to.

Each reset sequence defined in a pin mapping file can be applied to a maximum of one subchain. This is done by selecting a subchain from the dropdown menu for each reset sequence listed. Not every reset sequence requires a subchain to be assigned to it and these assignments can be altered on the Test Reset Sequence tab.
