Testing Multiple Boards

If you have more than one XJLink plugged into XJRunner, each gets its own tab on the main testing screen, and XJRunner can run tests on some or all of them simultaneously, in two modes. Whichever mode you use, each XJLink has its own testing tab for displaying results, and on the left of the screen an icon shows the status of the XJLink above its name (See Naming your XJLink).

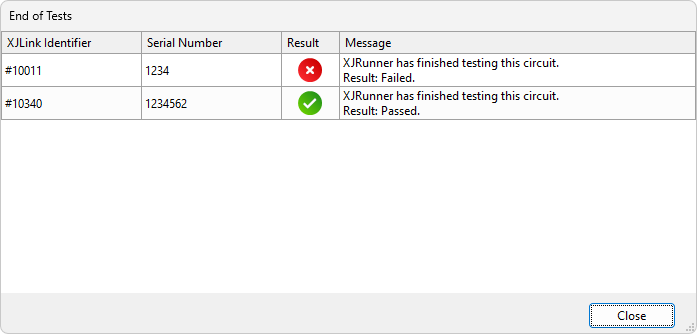

The pop-up dialog windows at the beginning and end of testing also reflect the fact that multiple tests have been carried out.

To switch between the group testing mode and the independent testing mode, use the Test Mode option on the toolbar to select Group or Independent. You can also change mode by using the Test Mode drop-down under the Tools menu.

The selected test mode can be read back at runtime in XJEase using the XJRUNNER_TEST_MODE read-only built-in.

Naming XJLinks

XJLinks are identified on their tabs by their serial number. It is also possible to give an XJLink a more descriptive name, which is displayed as well. In some contexts where there is less space the descriptive name will be used (if set) instead of the serial number.

In the XJLink manager (either in the system tray or started via Start->Programs->XJTAG (version)->Utilities->XJLink Manager), select the XJLink you wish to name and click the Rename... button.
