Disconnects

The Disconnects tab allows you to remove a pin's connection to a net, complementing the Connections tab, which allows connections to be added between pins. Disconnects can be used to tell XJTAG about changes made during prototyping, such as tracks being cut. They are specified at a pin level, so the only information you need to specify is the device identifier and pin number:

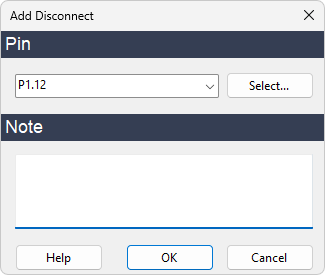

Figure 8: Add Disconnect

• XJDeveloper will process Disconnects before Connections, allowing you to disconnect a pin from one net and connect it to a different one.

As with Connections, you can check the relevant pin or net in Explorer and see that the pin is no longer connected.
