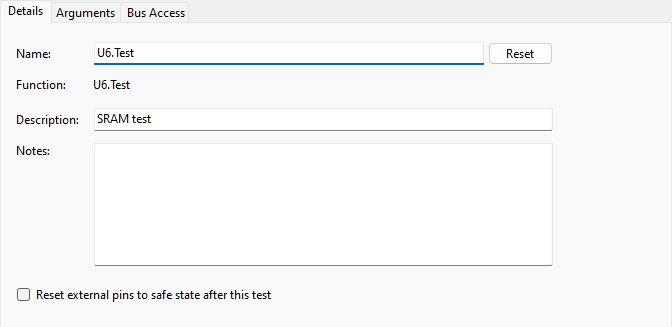

Details Tab

The details tab allows the function's name to be set and other parameters.

• The Name field allows the name of the test function to be set. By default, this is just the name of the function, but it can be modified. The function's name is used in conditions if a test function is dependent on the result of another, so must be unique within a group.
• The Reset button resets the function's name back to its default.
• The Function field displays the name of the function.
• The Description field allows a brief description of the function to be entered.
• The Notes field allows notes to be attached to the function.
• The Reset external pins to safe state after this test checkbox, when checked, ensures that any pins on external devices, e.g. ICT machines, are reset back to their safe state immediately after the test finishes.
