Add Range of Pin Connections Dialog

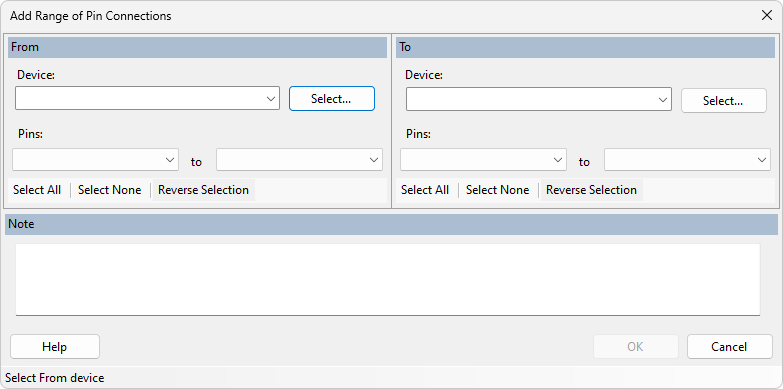

The Add Range of Pin Connections dialog, shown below, is used to add connections between a range of pins on two devices.

The device to make the connection from and to are selected either by typing in the auto-complete combo boxes or by clicking the Select... button which brings up a dialog to select the device. Then for each device a range of pins to make connections from or two are selected using the pins drop-down lists.

In order to create connections, the same number of pins must be selected for both devices.
