XJRunner Recorder

XJRunner Recorder is a tool for recording the interactions with the board when running tests through XJRunner, so a report can be submitted to the XJTAG Support team for troubleshooting.

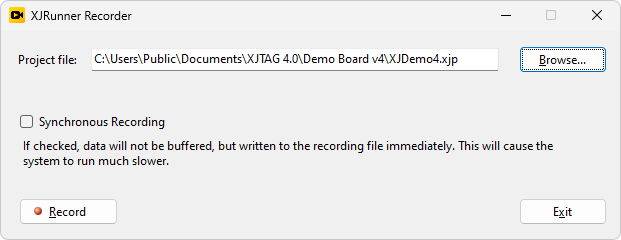

XJRunner Recorder's graphical interface allows you to specify the project (XJPack) file to use. Clicking the Record button will launch XJRunner with the appropriate arguments to make the recording.

You should not check the Synchronous Recording checkbox unless asked to do so by XJTAG support - using it will cause your system to run much more slowly.

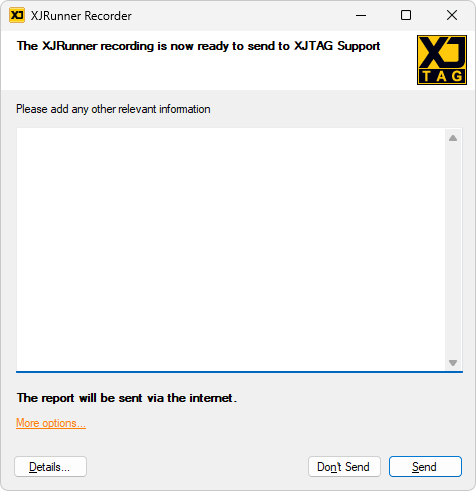

Operate XJRunner as usual, and then when you have performed the task you wish to record, simply close XJRunner to stop the recording. The file containing the recorded data will be saved within a copy of your XJPack project file and this can be sent to XJTAG Support by clicking the Send button on the Recording Report dialogue, which will appear when the recording stops.

See the XJTAG error reporter for more information about how the report can be sent to XJTAG.
