Stage 4: Device Connections

The next step involves checking connections between devices or boards and will frequently be automatically skipped if Revisions doesn’t find any changes. As before, the system will prompt you with any changes it has found but needs to check.

• The XJTAG Help System has more information about device connections.

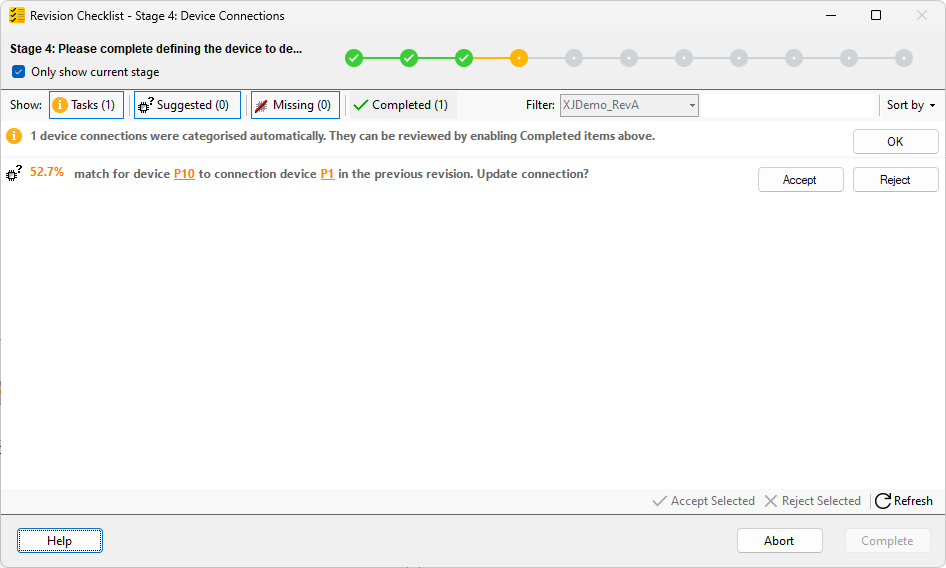

Figure 18: Device Connections

If you need to add any additional connections, these can be accessed from the Connections screen in XJDeveloper. If you do make any changes, ensure that you click the Refresh button to rescan the project and include the changes. Once you have approved all the tasks on this stage, the wizard will automatically continue to the next one.
